   QH11D系列精密剪板机性能特点：●相比较传统剪板机外形美观，简洁时尚●剪切精度高●后挡料采用齿条齿轮传动（手动、电动）控制尺寸精准●传动采用电磁吸盘制动，电机与闭合式齿轮箱与轴转动，结构紧凑；可单次、可连续●不剪切时，电机不转动，减少无为的消耗，节约能源●适合薄板加工，APS、PP片板等非金属材料的加工剪切

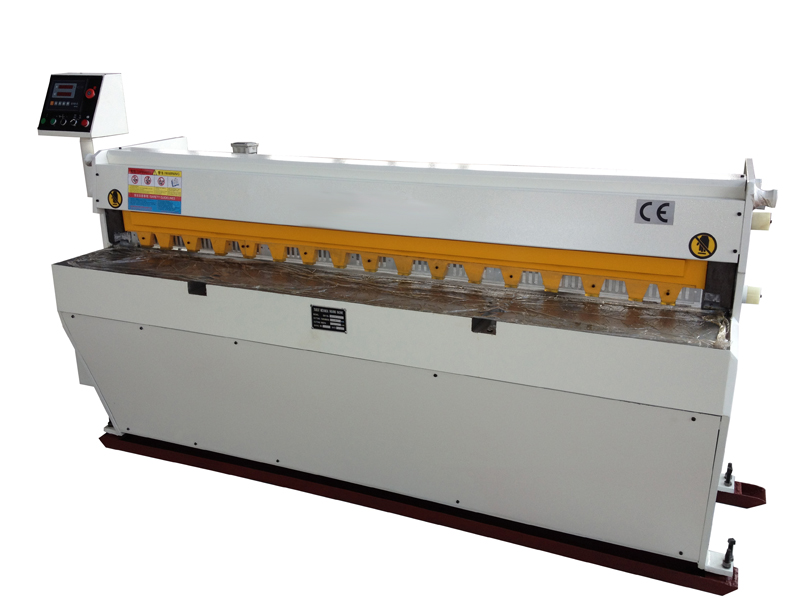

Performance characteristics of QH11D series precision shearing machine:
Compared with traditional shearing machines, it has a beautiful appearance, simple and fashionable
● High cutting accuracy

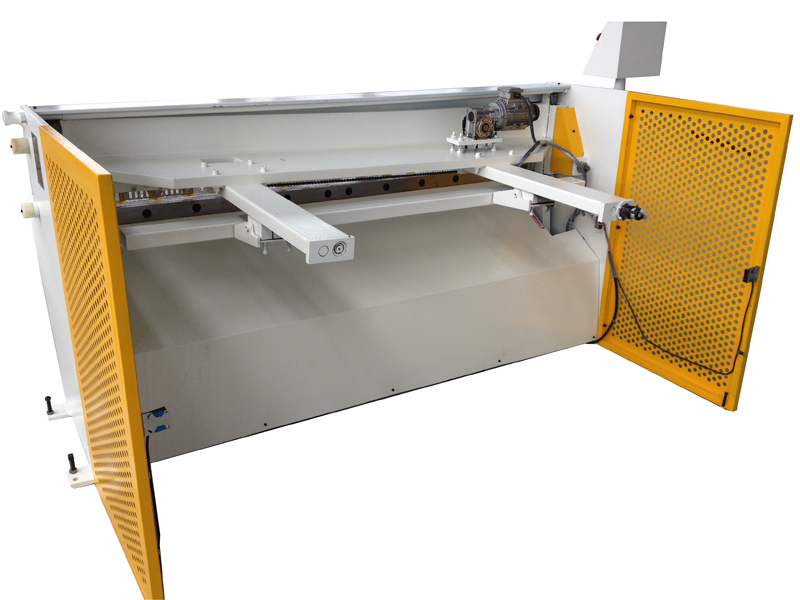

The rear gear adopts rack and pinion transmission (manual, electric) to control the size accurately
The transmission adopts electromagnetic suction cup braking, and the motor and closed gearbox rotate with the shaft, with a compact structure; Can be done once or continuously
When not cutting, the motor does not rotate, reducing the consumption of inactivity and saving energy, making it a new generation of energy-saving products
Suitable for thin plate processing, cutting of non-metallic materials such as APS and PP sheets
 QH11D系列精密剪板机相关知识介绍：
可剪板宽：6*2500mm
可剪板厚：0.3―4.0mm(铁板)，0.3-2.0mm（不锈钢）
额定功率：5.5KVA
额定电压：380VAC 50HZ
机器净重：3200KG

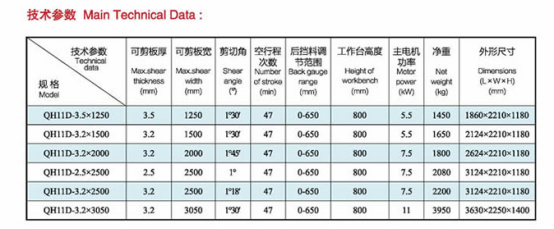

Introduction to QH11D series precision shearing machine related knowledge:
Scissorable board width: 6 * 2500mm
Scissorable plate thickness: 0.3-4.0mm (iron plate), 0.3-2.0mm (stainless steel)
Rated power: 5.5KVA
Rated voltage: 380VAC 50HZ
Net weight of machine: 3200KG
|
|
